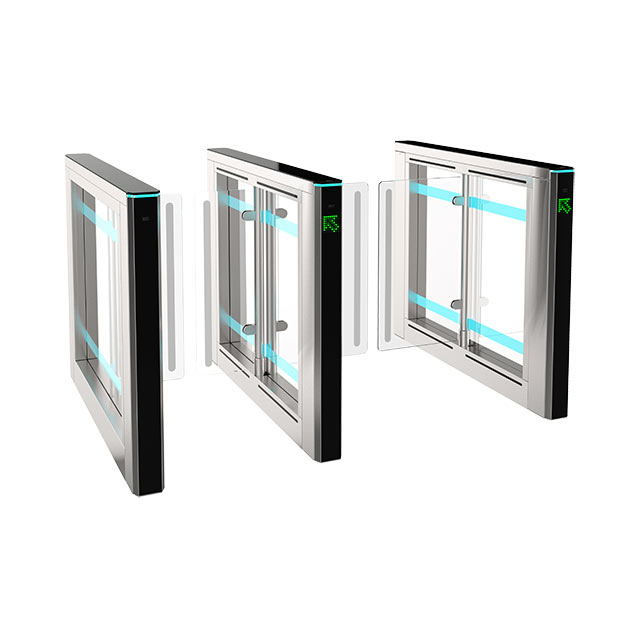

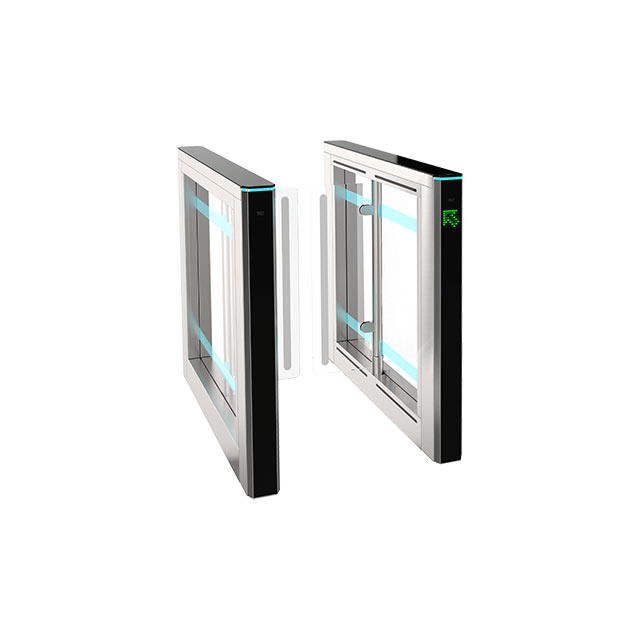

Sweeper-S fuses together all advantages of Sweeper model and new engineering solutions. Redesigned housing is huge advantage among other turnstiles in speed gates series. The width of one side housing is just 110 mm makes it the slimmest and the most sophisticated model on the security market.

● The speed gates have an ultra-modern futuristic design. Our speed gates of this series are ideal for stylish lobby interiors in hotels, banks, office centers, etc;

●BMDrive® Reliable mechanism with powerful BLDC gear motor ensures long term maintenance-free operation;

● Robust PinLock® locking system prevents from full leaves opening manually in case of vandalism;

● The smart self-diagnosing system of mechanism BMDrive® automatically analyzes the system, detects critical malfunctions, and records error log and warnings;

● The BMDrive® mechanism controller is equipped with an OLED display for easy setup and configuration without special programmers, also a full configuration and diagnostics is possible via a USB connector by using a service software for Windows OS;

●Digital control of force and leaf speed in combination with safety sensors prevent a passing person from being struck by a leaf, even in case of an unauthorized passage;

● By use of artificial intelligence algorithms and large number of high-precision infrared passage sensors, the speed gates detects and alarms when two people try to pass by one card, pass in the wrong direction and pass without authorization;

● Sensor system allows detecting the passage of person with luggage, arranging a free exit without the need for identification.


Sweeper-S 550 Sweeper-S 1000
Unit dimensions (WxLxH), mm                               110x1334x1010
Passage width, mm 550 1000
Opening/closing time, sec 0.7 1
Blocking system                                               PinLock®
Mechanism                                                  1500
Mechanism                                 BMDrive® servo-driven (BLDC)
Available housing  Brushed SS AISI 316

Polished SS AISI 304

Polished SS AISI 316

Powder coated RAL

Voltage

                                           from the AC (100–240) V, 50/60 Hz

                                                from a DC source 12 V

Top lid

Solid glass top

Mean time to failure, cycles

MCBF 10 000 000
